規整填料塔的分離性能取決于內件，即填料、分布器、收集器等。同時也取決于許多參數，如氣體負荷，液體負荷、物料性質、操作壓力、填料濕潤性能和液體分布不均勻等等。至今不能由填料的幾何形狀來精確計算塔的分離性能，需要通過填料塔的理論和不同條件下通過試驗塔來測定準確數據。用戶可根據資料以一級近似程度確定塔的尺寸和需要的填料高度。如果需要經濟、合理的結構形式，我廠愿與用戶密切合作。 |
|
The separation performance of structured packing columns depends on internal pieces, i.e. the packing, distributor and collector, etc. Besides it also depends on many parameters, including gas load, liquid load, material nature, operating pressure, humidity performance of the packing and uneven liquid distribution, etc. Up till now, it is impossible to calculate separation performance in an accurate manner of the columns based on physical dimension of the packing. Instead, accurate data shall be measured based on theory of packing columns and tests under different conditions. The user may decide size of column and required height of the packing of first order approximation based on the data. Our company is willing to perform close cooperation to provide structural form in an economic and reasonable manner if necessary. |
 |
 |
 |

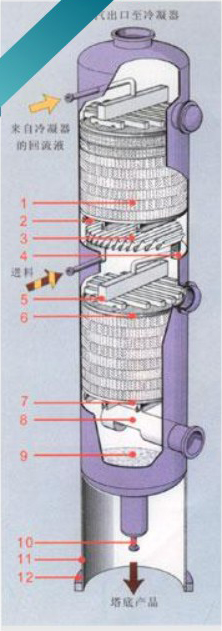

1、規整填料
2、支撐柵板
3、液體收集器
4、集液環
5、多級槽式液體分布器
6、填料壓圈
7、支撐柵板
8、蒸汽入口管
9、塔底
10、至再沸騰循環管
11、裙座
12、底座環
1, the structured packing
2, support grid
3, liquid collector
4, liquid collection ring
5, multi-stage trough type liquid distributor
6, packing pressing ring
7, support grid
8, steam inlet pipe
9, column bottom
10, to re-boiling circulating pipe
11, skirt
12, base ring |
此結構適合于直徑大于等于名800mm的填料塔
This structure is suitable for packing column
with diameter not less than 800 mm |
|
 |

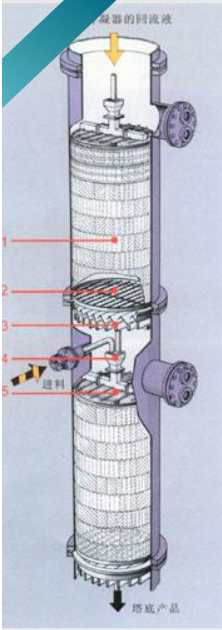

1、規整填料
2、支撐柵板
3、液體收集器
4、降壓管
5、管式液體分布器
1, the structured packing
2, support grid
3, liquid collector
4, pressure reducing pipe
5, tubular liquid distributor |
此結構適合于直徑小于800mm的填料塔
This structure is suitable for packing column
with diameter less than 800 mm |
|
|
