具有結構簡單操作方便，使用周期長，性能穩定可靠，蒸汽耗暈小，適用性能強，產品質量好，特別適用于不耐高溫、易燃、調溫下易氧化的膏狀物料的干燥，該機經用戶長期使用證明是一良好的干燥設備。原理：被干燥物料從殼體上方正中間加入，在不斷正反轉動的耙齒的攪伴下，物料軸向來回走動，與殼體內壁接觸的表面不斷新，受到蒸汽的間接加熱，耙齒的均勻攪拌，粉碎棒的粉碎，使物料表面水分有利的排出，氣化的水分經干式除塵器、濕式除塵器、冷凝器，從真空泵出口處放空。
It enjoys advantages as easy & convenient operation, long life circle, stable & reliable performance, low steam consumption, strong adaptability and good quality which are especially applicable for drying paste materials which cannot resist high temperature, flammable and is easy to be oxidized under temperature adjusting. It is proved to be a good drying device after long-time use by the users. The principles are: add the materials to be dried from middle of upper part of the shell body. The materials move in axial direction back and forth under positive and negative rotation of the rake (stirring). The surface which contacts with inner wall of the shell keeps renewing. Under indirect heating of the steam, even stirring by the rake and crushing by the crushing bar, it is easier for water on material surface to be discharged. The gasified water is emptied at outlet of vacuum pump by dry-type collector, wet type collector and condenser.
適用物料 Applicable materials
泥漿狀高糊狀100目以下物料各種顏料、泥頭狀物科濾并離心機濾并純堿冼滌劑、堿石淀粉、染料顏料、粘土灰等粘土等水泥等。
All kinds of pigments of muddy type and highly pasted type under 100 mesh, muddy type materials, soda detergent, alkali starch, dyestuff pigment, clay grey clay and cement, etc.
適當條件下應用 Suitable application conditions 100目以下物料溶液合成纖維、結晶真空液、乳油液甘薯片、礦砂等懸浮液型號和技術特性。 Models and technical features of synthetic fiber, crystallization vacuum liquid, emulsion liquid, ore and other suspended liquid under 100 mesh.

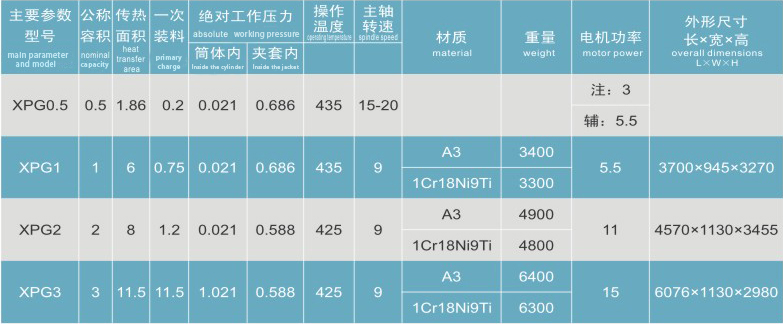

主要技術參數參考表 Reference table of main technical parameters
